StarTech.com 4 Port PCI SATA RAID Controller Adapter Card Item # 967263

 |

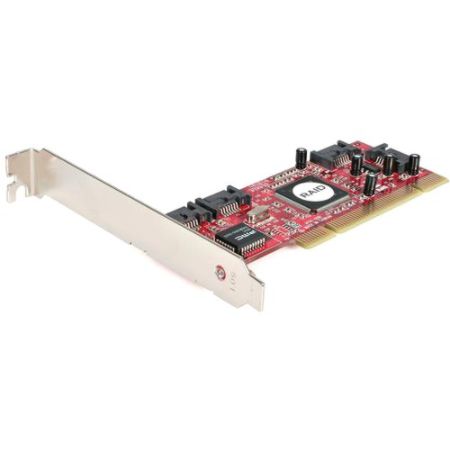

StarTech.com 4 Port PCI SATA RAID Controller Adapter Card
$ 42 .99 / each $42.99
Add a Protection Plan (optional)  Learn More
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The PCISATA4R1 4 Port PCI SATA RAID Controller lets you add four internal SATA 1.0 (1.5 Gbps) ports to your PC through a single PCI expansion slot, while offering support for several RAID modes or a simple JBOD (Just a Bunch of Disks) configuration.The PCI SATA card provides increased performance and capacity with RAID 0 (Striping), or a redundant copy of your hard drive with RAID 1 (Mirroring). Configuring in RAID 10 (a.k.a. RAID 0+1) lets you leverage both by creating a mirrored copy of your striped disk set. Plus, the SATA RAID card supports RAID 1+S (Mirror + Spare), which uses a third installed drive to automatically replace a failed drive and rebuild the mirrored set - even if it is the boot drive that failed.For the ability to fit most standard computer cases, the card ships with a standard profile bracket installed and includes a low profile bracket for adapting to slimline or small form factor systems.While the PCISATA4R1 card supports any size hard drive in JBOD mode, the max supported drive size when in RAID mode is 2 TB (per port).

    Back To Top

    Product Details

    Item # 967263
    OfficeMax # 22961760
    Manufacturer # 1109902
    RAID Levels 0; 1; 0+1; 10; 1+S; JBOD
    height 0.9 in
    Additional Information FIFO: 256 Bytes per channel; Includes features like Serial ATA to PCI interrupt masking and Watch Dog Timer for fault resiliency; Universal IO bracket easily fits any low profile or full-sized system; Works as a non-RAID controller card when the system BIOS is not RAID configured; Add 4 SATA ports to a full or low profile/small form factor (SFF) computer system from a single PCI card to conserve the number of available expansion slots.; Windows Server® 2012, 2008 R2, 2003; Linux
    Total Number of SATA Ports 4
    width 1.8 in
    depth 4.7 in
    Product Name 4 Port PCI SATA RAID Controller Adapter Card
    manufacturer StarTech.com
    Host Interface PCI
    Compatibility Plug and Play; Supported Operating System:Windows 98; Windows 98SE; Windows ME; Windows NT 4.0; Windows 2000; Windows XP; Windows Server 2003 and up
    RAID Supported Yes
    brand name StarTech
    Number of SATA Ports (Internal) 4
    Number of Physical Drive Supported 4
    Platform Supported PC
    form factor Plug-in Card
    warranty length limited lifetime
    model name PCISATA4R1
